brass mesh/brass wire mesh/brass screen mesh

Copper Mesh

GoldenMetal providing various copper wire mesh forms, copper wire mesh roll/sheet/panel and customized sizes and shapes.

Find your inspection need, today to get an estimate for your project!

Brass wire mesh;

Phosphor bronze wire mesh;

Red copper wire mesh;

Inquire Now

PRODUCT DESCRIPTION

Brass Wire Mesh:

Brass wire mesh size and type:

Material: brass wire (65 brass, 70 brass and 80 brass).

Brass mesh woven style: plain weave, twill weave and dutch weave.

Mesh :2-200mesh

Diameter: 0.05-2mm

Aperture: 0.074-10.90（mm）

Brass screen mesh roll width: 0.5-2m

Brass wire cloth roll Length: 10-100m or customized.

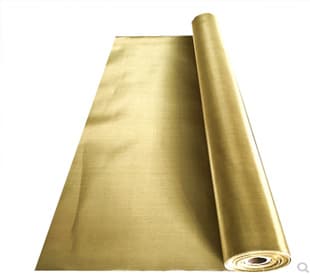

100 Mesh Brass Wire Mesh/brass woven wire mesh 3 Mesh brass mesh sheets/brass wire mesh/brass screen mesh/

Woven brass mesh detail specification:

Brass mesh and brass wire cloth specification
Mesh	Wire Diameter			Opening (mm)
Mesh	SWG	mm	inch	Opening (mm)
6	21	0.8	0.032	3.43
6	22	0.711	0.028	3.522
8	23	0.61	0.024	2.565
10	25	0.508	0.02	2.032
12	26	0.457	0.018	1.66
14	27	0.417	0.016	1.397
16	29	0.345	0.014	1.243
18	30	0.315	0.012	1.096
20	30	0.315	0.0124	0.955
22	30	0.315	0.0124	0.84
24	30	0.315	0.0124	0.743
26	31	0.295	0.0116	0.682
28	31	0.295	0.0116	0.612
30	32	0.274	0.011	0.573
32	33	0.254	0.01	0.54
34	34	0.234	0.0092	0.513
36	34	0.234	0.0092	0.472
38	35	0.213	0.0084	0.455
40	36	0.193	0.0076	0.442
42	36	0.193	0.0076	0.412
44	37	0.173	0.0068	0.404
46	37	0.173	0.0068	0.379
48	37	0.173	0.0068	0.356
50	37	0.173	0.0068	0.335
60 × 50	36	0.193	0.0076	-
60 × 50	37	0.173	0.0068	-
60	37	0.173	0.0068	0.25
70	30	0.132	0.0052	0.231
80	40	0.122	0.0048	0.196
90	41	0.112	0.0044	0.17
100	42	0.012	0.004	0.152
120 × 108	43	0.091	0.0036	-
120	44	0.081	0.0032	0.131
140	46	0.061	0.0024	0.12
150	46	0.061	0.0024	0.108
160	46	0.061	0.0024	0.098
180	47	0.051	0.002	0.09
200	47	0.051	0.002	0.076
Mesh size and wire diameter can be customized

Brass wire mesh applications:

RFI/EMI/RF shielding, sieving diversified pellet, filtering liquid and gas, , insect screens, papermaking, powder, porcelain clay and glass, chinaware printing, architectural applications, sugar and marine applications.

Phosphor Bronze Wire Mesh:

Phosphor copper mesh cloth is made of the alloy of phosphor, tin and copper.

Phosphor bronze wire mesh size and type:

Material: Phosphor bronze wire (0.03%-0.35% phosphor, 5%-8% tin, other is copper)

Woven style: plain weave, twill weave or dutch weave.

Mesh :6-250mesh

Diameter:0.04-0.7mm

Roll Width: 0.5-1.5m

Roll Length: 10-100m

300 Mesh 400 Mesh Phosphor Bronze Wire Mesh 60mesh 80mesh phosphor bronze wire mesh

Phosphor bronze wire mesh detail specification:

Phosphor bronze wire mesh specifications
Mesh	Wire Diameter			Opening (mm)
Mesh	SWG	mm	inch	Opening (mm)
10	25	0.508	0.02	2.032
12	26	0.457	0.018	1.66
14	27	0.417	0.016	1.397
16	29	0.345	0.014	1.243
18	30	0.315	0.012	1.096
20	30	0.315	0.0124	0.955
22	30	0.315	0.0124	0.84
24	30	0.315	0.0124	0.743
26	31	0.295	0.0116	0.682
28	31	0.295	0.0116	0.612
30	32	0.274	0.011	0.573
32	33	0.254	0.01	0.54
34	34	0.234	0.0092	0.513
36	34	0.234	0.0092	0.472
38	35	0.213	0.0084	0.455
40	36	0.193	0.0076	0.442
42	36	0.193	0.0076	0.412
44	37	0.173	0.0068	0.404
46	37	0.173	0.0068	0.379
48	37	0.173	0.0068	0.356
50	37	0.173	0.0068	0.335
60 × 50	36	0.193	0.0076	-
60 × 50	37	0.173	0.0068	-
60	37	0.173	0.0068	0.25
60	38	0.15	0.0059	0.27
70	30	0.132	0.0052	0.231
80	40	0.122	0.0048	0.196
90	41	0.112	0.0044	0.17
100	42	0.012	0.004	0.152
120 × 108	43	0.091	0.0036	-
120	44	0.081	0.0032	0.131
140	46	0.061	0.0024	0.12
150	46	0.061	0.0024	0.108
160	46	0.061	0.0024	1.098
180	47	0.051	0.002	0.09
200	47	0.051	0.002	0.076
220	48	0.051	0.002	0.065
250	48	0.041	0.0016	0.061
280	48	0.035	0.0014	0.056
300	49	0.031	0.0012	0.054
320	49	0.031	0.0012	0.046
330	49	0.031	0.0012	0.042
350	49	0.031	0.0012	0.039
360	49	0.025	0.00098	0.0385
400	50	0.025	0.00098	0.0385
Mesh size and wire diameter can be customized

Phosphor bronze wire mesh applications:

Bronze works uniquely well in marine environments because saltwater doesn't easily destroy it. Phosphor bronze wire mesh applied to sieving and filtering granule, filtering liquid and gas, filter discs, craft papermaking, EMF/RFI shielding, faraday cage, window screen or door screen to prevent insect.

Red Copper Wire Mesh:

Red Copper Wire Mesh is woven with Pure copper wire 99.9%, Annealing to make the wire more flexible, Class A process.

Copper wire mesh size and type:

Material: Copper Wire (pure copper proportion 99.9%)

Woven style: plain weave, twill weave, dutch weave.

Mesh :2-200mesh

Diameter: 0.05-1.8mm

Roll Width: 0.5-3m or customized

Roll Length: 30m or customized

250mesh Copper Meshcopper mesh screen 10mesh copper mesh sheet/copper mesh panel

Red copper wire mesh detail specification:

Copper mesh screen specification
Mesh	Wire diameter			Opening (mm)
Mesh	SWG	mm	Inch	Opening (mm)
2	15	1.8	0.071	10.9
3	16	1.6	0.063	6.866
4	22	0.711	0.028	5.64
5	20	0.91	0.036	4.17
6	22	0.711	0.028	3.522
8	26	0.457	0.018	2.7
10	27	0.417	0.016	2.1
12	26	0.457	0.018	1.66
14	27	0.417	0.016	1.397
16	29	0.345	0.013	1.243
18	26	0.457	0.018	0.98
20	30	0.315	0.012	0.955
22	32	0.274	0.009	0.88
24	30	0.315	0.012	0.743
26	31	0.295	0.01	0.682
28	31	0.295	0.01	0.612
30	32	0.274	0.009	0.573
32	33	0.254	0.008	0.54
34	34	0.234	0.007	0.513
36	34	0.234	0.007	0.472
38	35	0.213	0.005	0.455
40	36	0.193	0.008	0.442
42	36	0.193	0.0076	0.412
44	37	0.173	0.0068	0.404
46	37	0.173	0.0068	0.379
48	37	0.173	0.0068	0.356
50	37	0.173	0.0068	0.335
60 × 50	36	0.193	0.0076	-
60 × 50	37	0.173	0.0068	-
60	42	0.1	0.004	0.32
70	41	0.112	0.0044	0.251
80	40	0.122	0.0048	0.196
90	41	0.112	0.0044	0.17
100	42	0.102	0.004	0.152
120 × 108	43	0.091	0.0036	-
120	45	0.071	0.0028	0.14
140	46	0.061	0.0024	0.12
145	46	0.061	0.0024	0.1168
150	46	0.061	0.0024	0.108
160	46	0.061	0.0024	0.098
180	47	0.051	0.002	0.09
200	47	0.051	0.002	0.076
Mesh size and wire diameter can be customized

Red Copper Wire Mesh applications:

Copper mesh cloth have smooth surface, bright color, good electricity and heat conductivity, good toughness, can resistant to corrosion, abrasion, wear, rust, salt air, brine, acid and alkali. They can be used for shielding and earthing in telecommunication joints and others in industry, decorative mesh of house, filtration screen in mine, metallurgy, construction, pharmacy, printing, petroleum, rubber, paper making and food and other industries.

Whether you want a standard rolls or sheet or cut pieces or a custom fabricated mesh, we will be happy to deliver the best copper mesh for your needs.
